Expand a compatible laptop or tablet USB-C port into a practical seven-port workspace. Choose Dual HDMI for two HDMI video outputs, or HDMI + DP for one HDMI and one DisplayPort output. Both versions offer USB 3.2 Gen 2 data, Gigabit Ethernet and USB-C PD input in a compact aluminum housing with an integrated 15 cm USB-C cable.

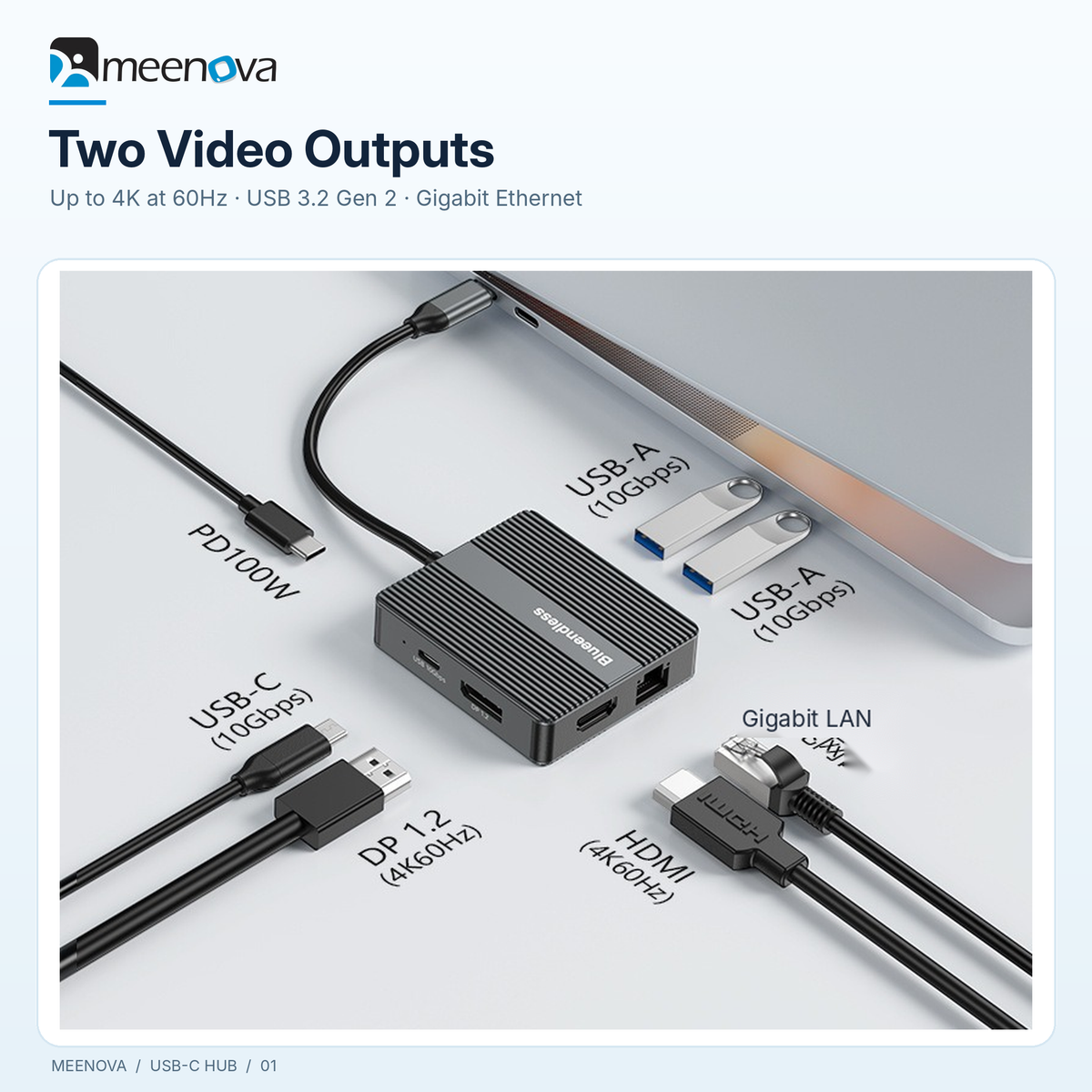

Two Display Port Configurations
Dual HDMI (HD706): Two HDMI video output ports. HDMI + DP (HP706): One HDMI and one DisplayPort output. Choose the version that matches your existing monitor connections. The supplier's reference images contain conflicting DisplayPort-version labels; verify the exact DP revision before relying on a specific protocol version.

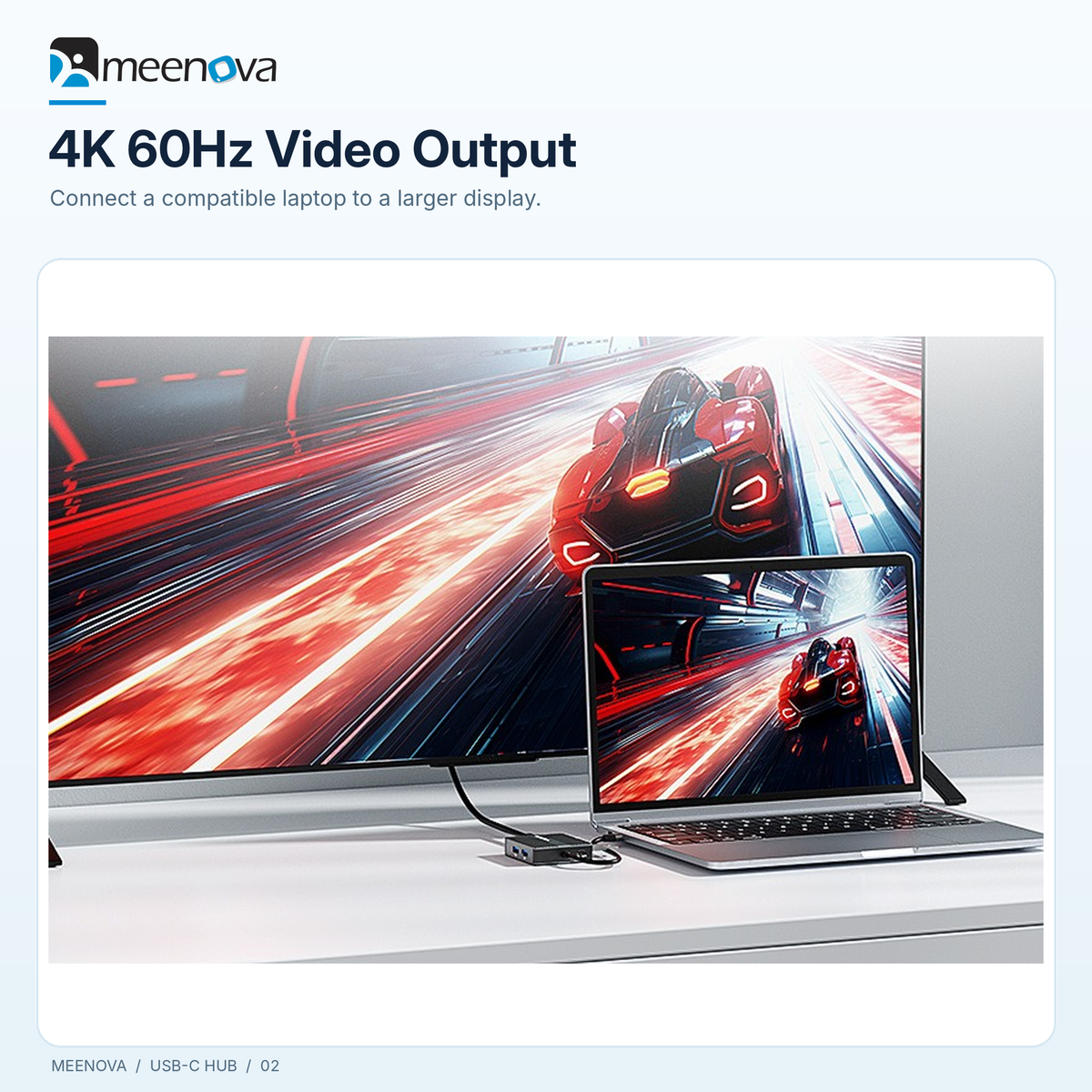

Up to 4K at 60Hz
Connect external monitors for presentations, spreadsheets, creative projects and entertainment. Up to 4K at 60Hz is advertised for supported video connections; actual resolution, simultaneous-display capabilities and refresh rate depend on the host computer, operating system, bandwidth and attached monitors.

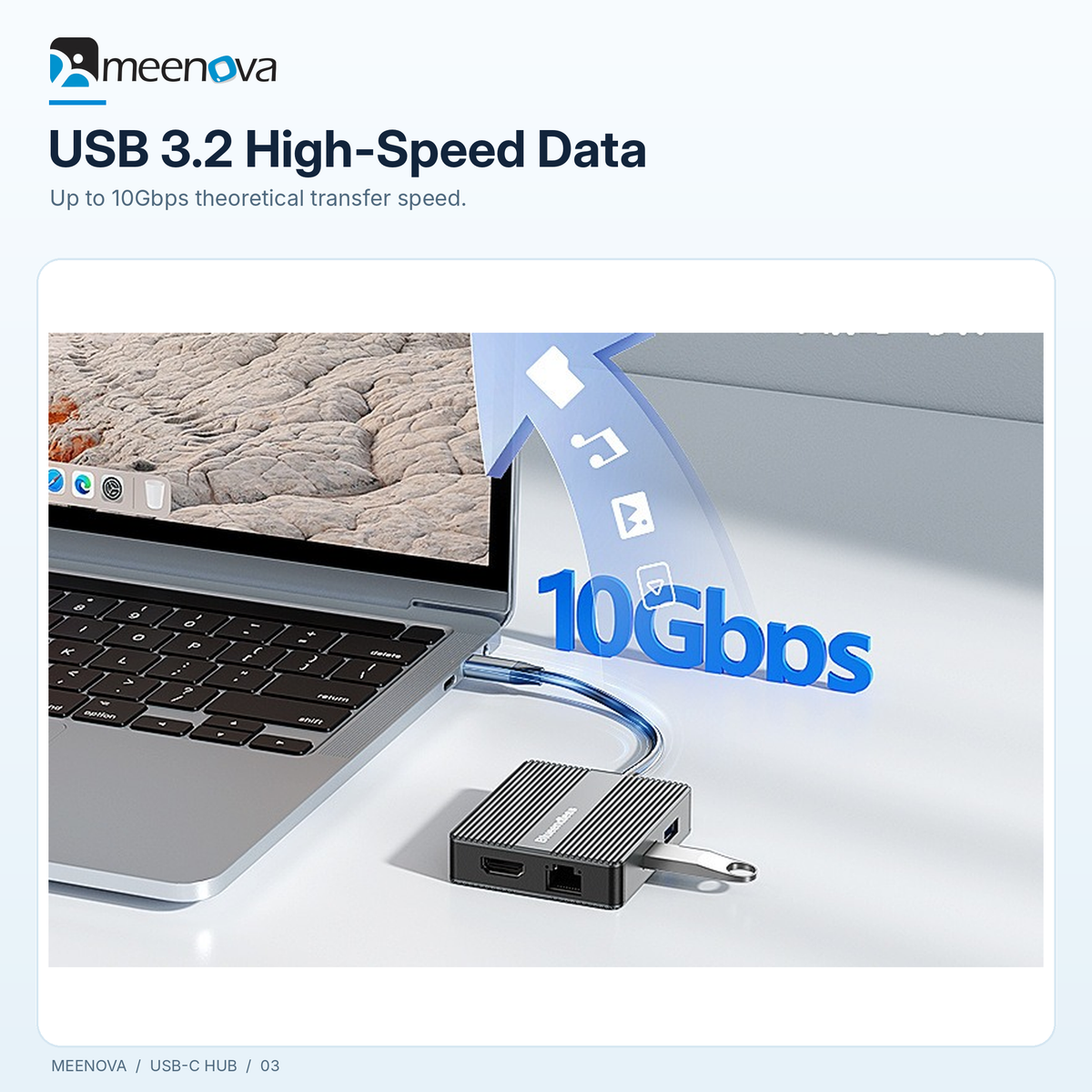

USB 3.2 Gen 2 Data Connections
Two USB-A ports and one USB-C data port provide up to 10Gbps theoretical interface speed each, subject to device support. Connect compatible USB storage, card readers and other peripherals. Real-world transfer speeds are lower and depend on the source, storage device and workload.
Up to 100W USB-C PD Input
Connect a compatible USB-C Power Delivery charger to the dedicated PD input while using the hub. 100W is the stated maximum PD input rating, not a promise of 100W delivered to the laptop. Charging power available to the host depends on power consumption, charger, cable and host support.
Gigabit Wired Networking
Use the RJ45 Ethernet port for a wired network connection supporting 10/100/1000Mbps auto-negotiation, subject to the connected network equipment and cabling.

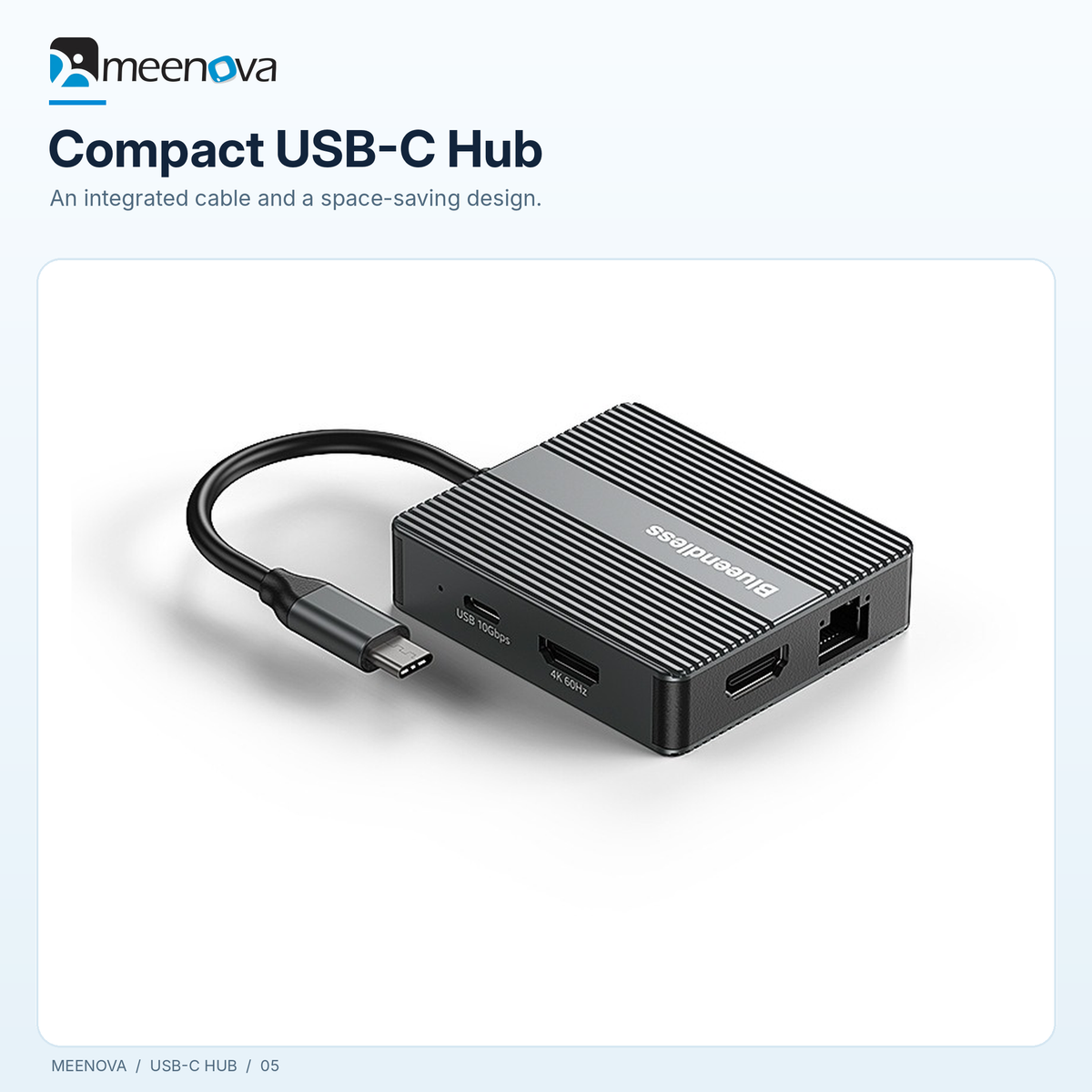

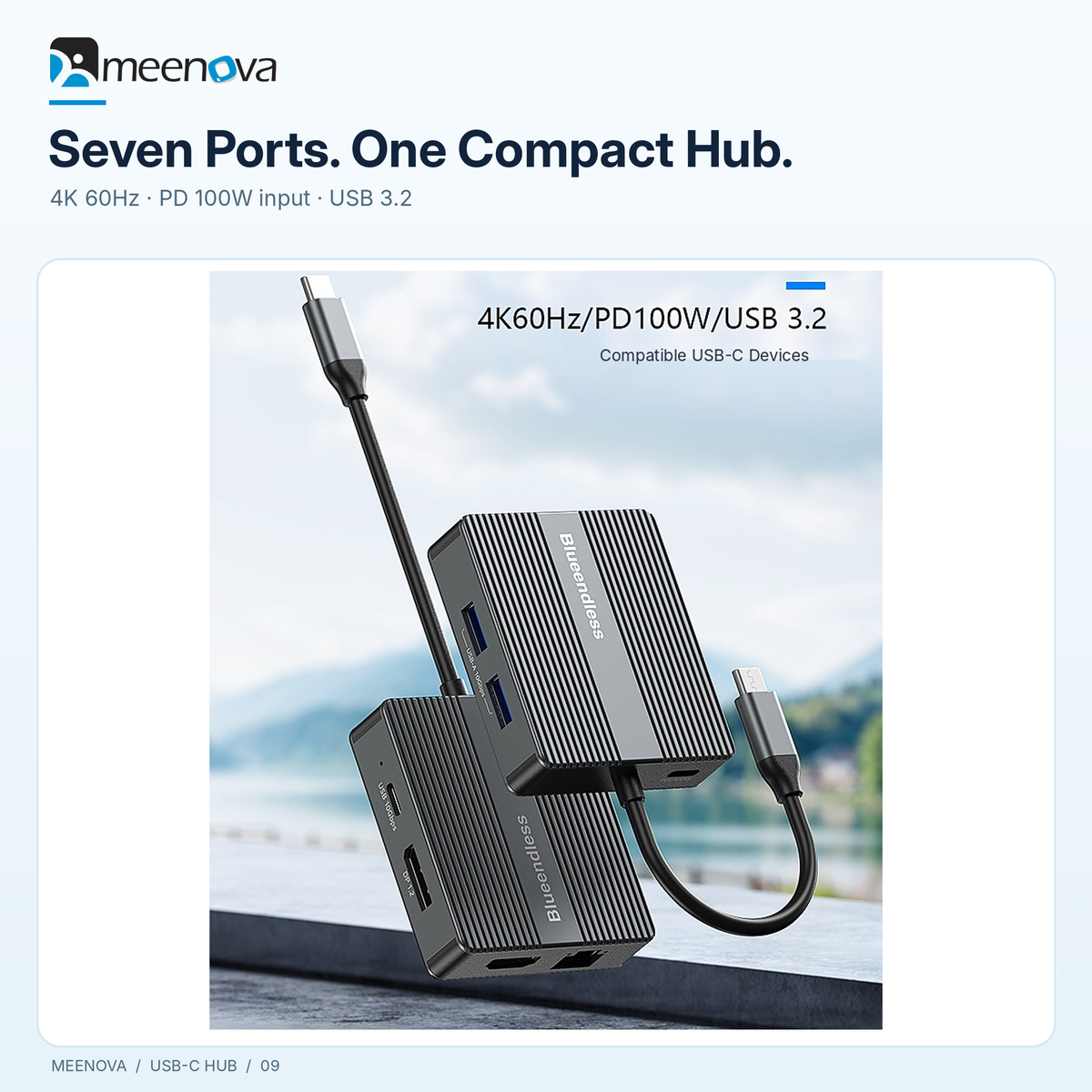

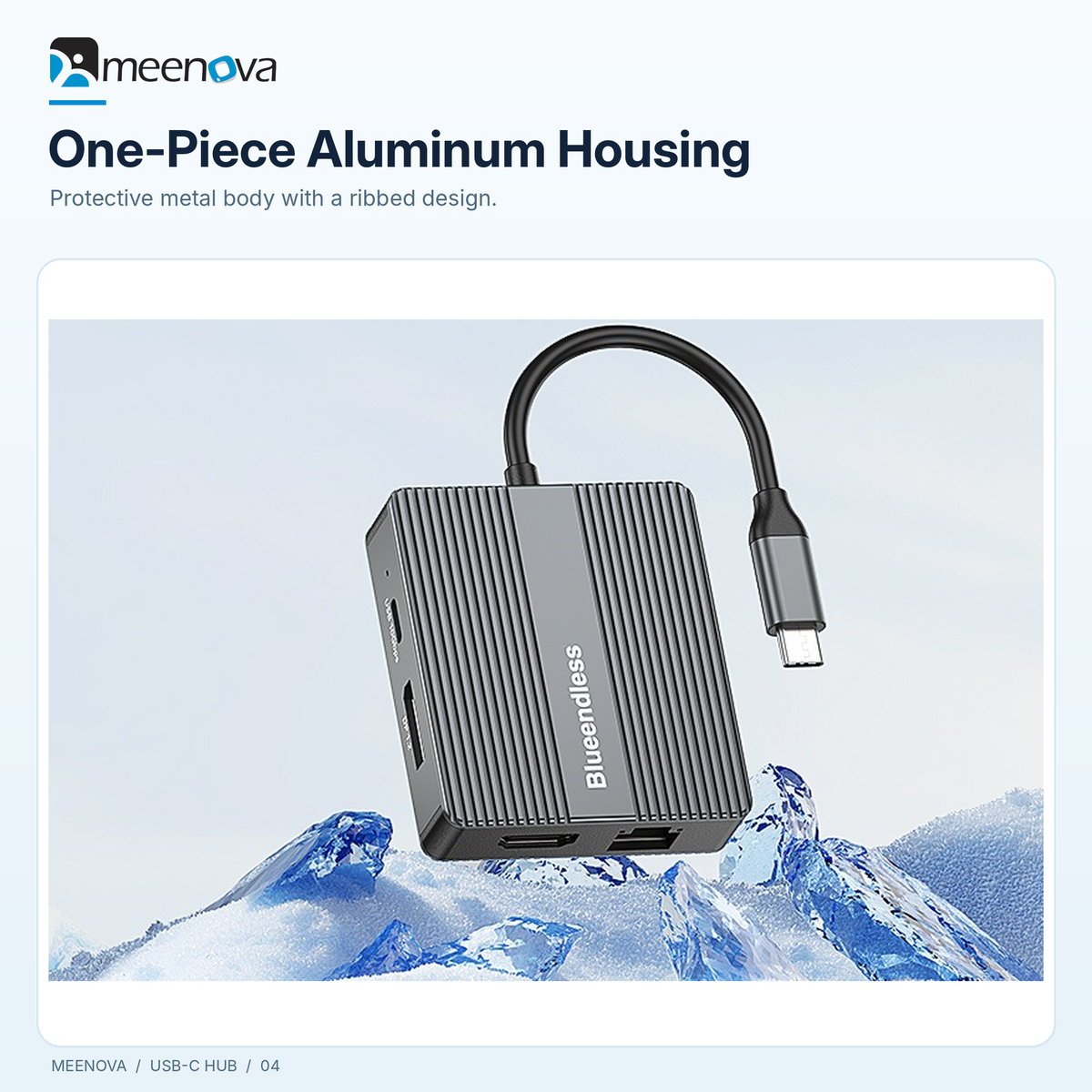

Compact Aluminum Housing
The ribbed aluminum-alloy enclosure is designed for a tidy portable setup. Approximate housing size is 70 × 61 × 17 mm, with an integrated 15 cm USB-C host cable. Measurements are based on the supplier reference and may vary slightly.

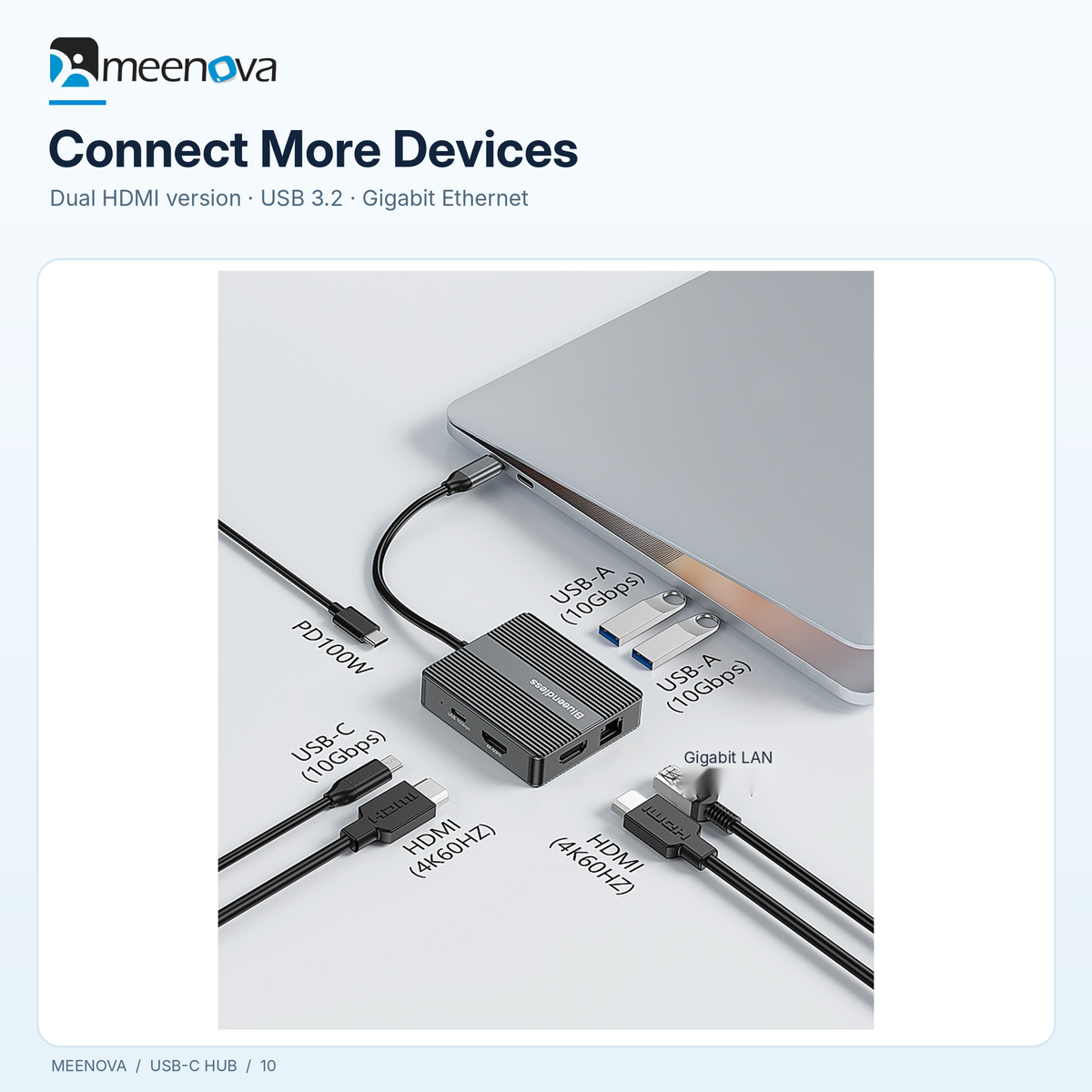

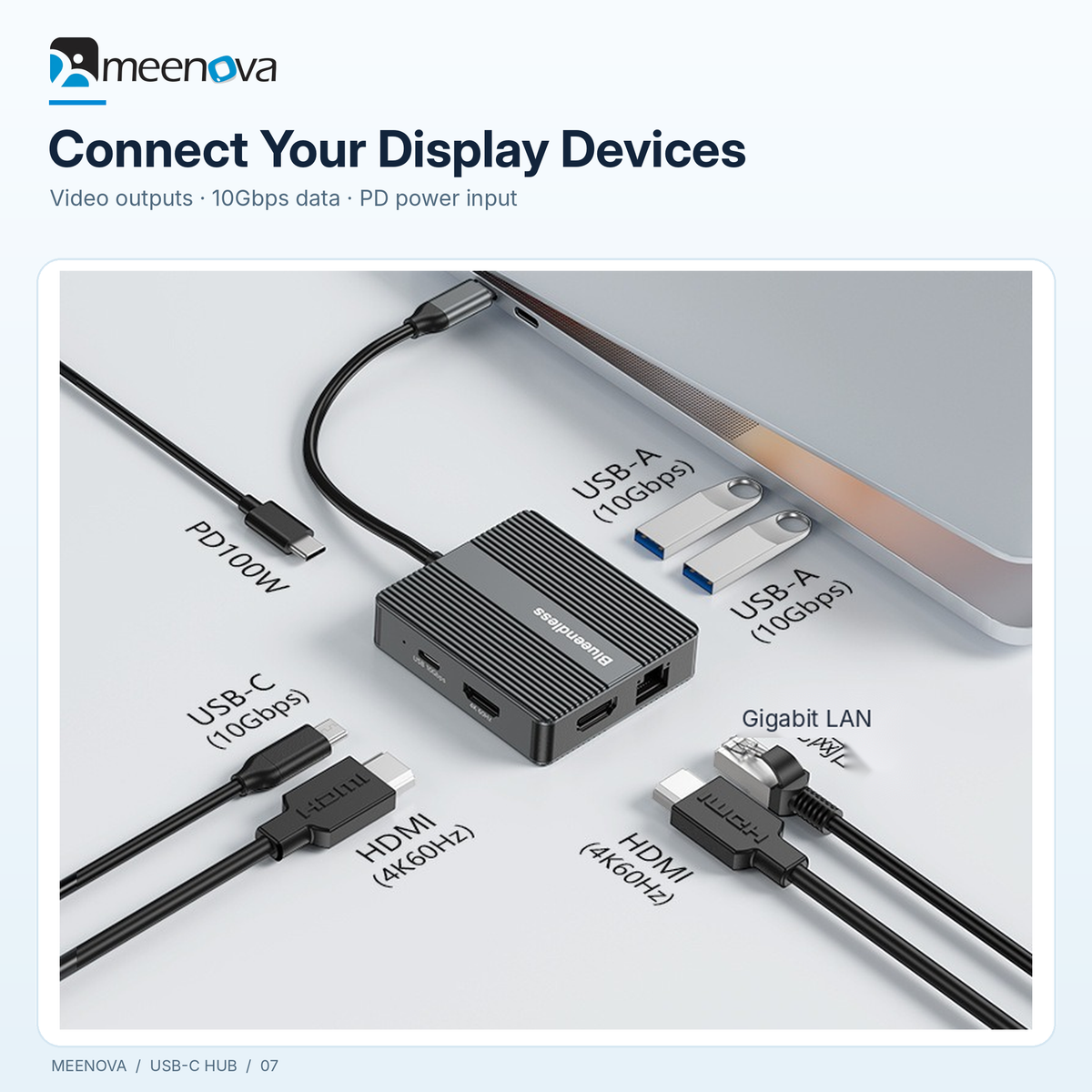

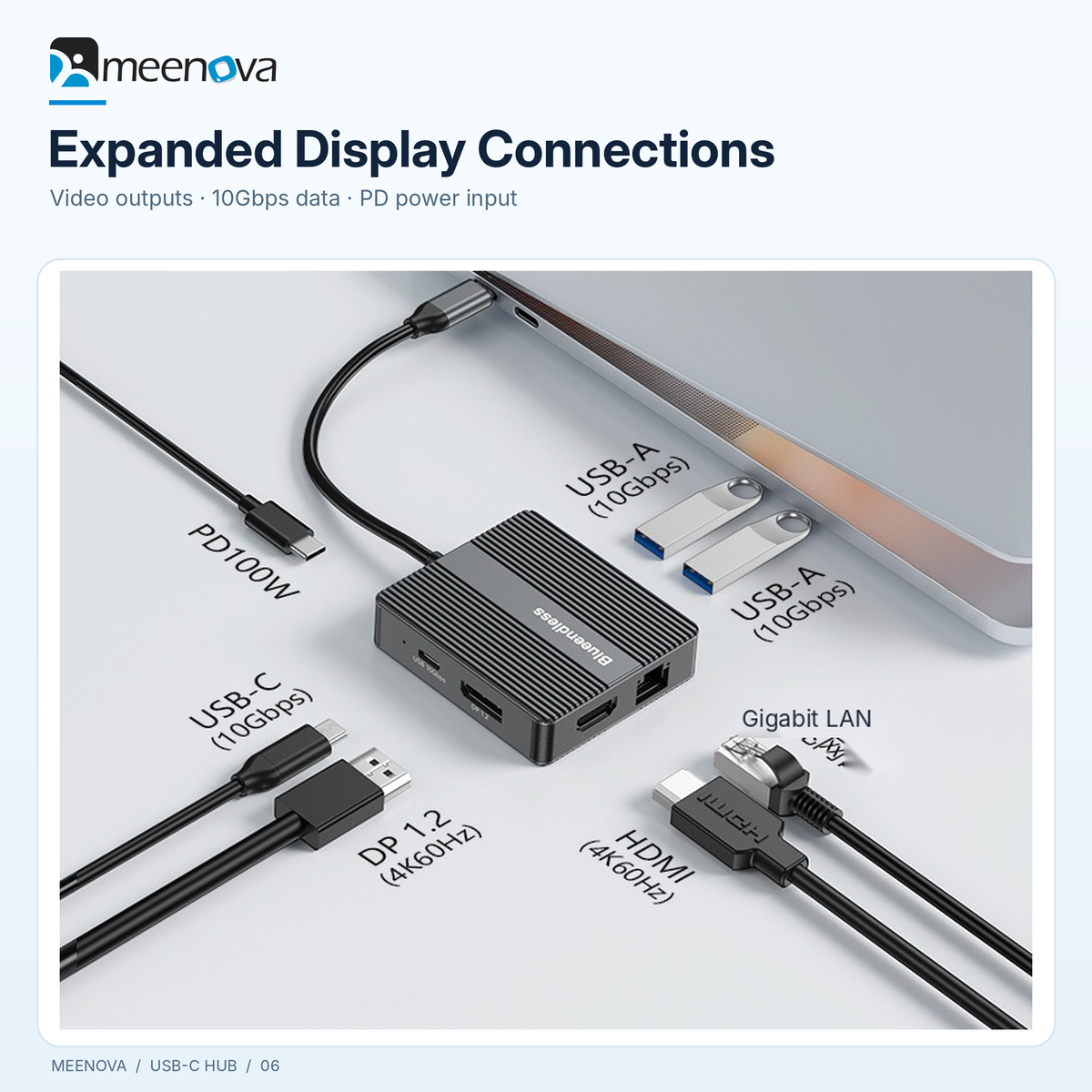

Connect a Flexible Desk Setup
Connect the attached USB-C cable to a compatible computer. Attach one or two external displays to the video output ports for the chosen model. The computer must support USB-C video output, typically DisplayPort Alt Mode or compatible Thunderbolt/USB4 functionality. Dual-display extension behavior varies by computer and operating system; some Mac configurations can mirror but not independently extend to two external monitors.
Transfer Files and Connect Accessories
Use the two 10Gbps USB-A ports and 10Gbps USB-C data port for supported peripherals and fast storage connections. These ports are data connections; do not assume the USB-C data port provides video output or 100W PD charging.
Power and Network Your Workspace
Connect an external USB-C PD adapter to the PD input and an Ethernet cable to the RJ45 port. The power adapter and Ethernet cable are separate accessories unless explicitly included by the seller. A wired connection can help when Wi-Fi performance is inconsistent.
Technical Specifications
| Specification | Dual HDMI | HDMI + DP |
|---|---|---|
| Reference model | HD706 | HP706 |
| Display ports | 2 × HDMI | 1 × HDMI + 1 × DP (revision pending confirmation) |
| USB-A data ports | 2 × USB 3.2 Gen 2, up to 10Gbps theoretical | |
| USB-C data | 1 × USB-C, up to 10Gbps theoretical | |
| USB-C PD input | 1 × USB-C PD, up to 100W input | |
| Ethernet | 1 × RJ45, 10/100/1000Mbps | |
| Video resolution | Up to 4K@60Hz, host dependent | |
| Host connector | Integrated USB-C male, approx. 15 cm | |
| Housing dimensions | Approx. 70 × 61 × 17 mm | |
| Shipping weight entered | 200 g per variant (merchant-supplied) | |
Package Contents
1 × 7-in-1 USB-C hub in the selected Model configuration, with an attached 15 cm USB-C cable. Monitor, laptop, charging adapter, display cables, Ethernet cable and USB storage devices are shown for illustrative purposes only; additional package contents are not yet confirmed.
Important Notes
Maximum data rates and video resolutions are conditional capabilities rather than guaranteed throughput or display performance. The actual charging power passed to a computer is lower than the PD input rating. Compatibility, especially multiple independent external displays and the precise DisplayPort specification, should be checked for your host before purchasing.

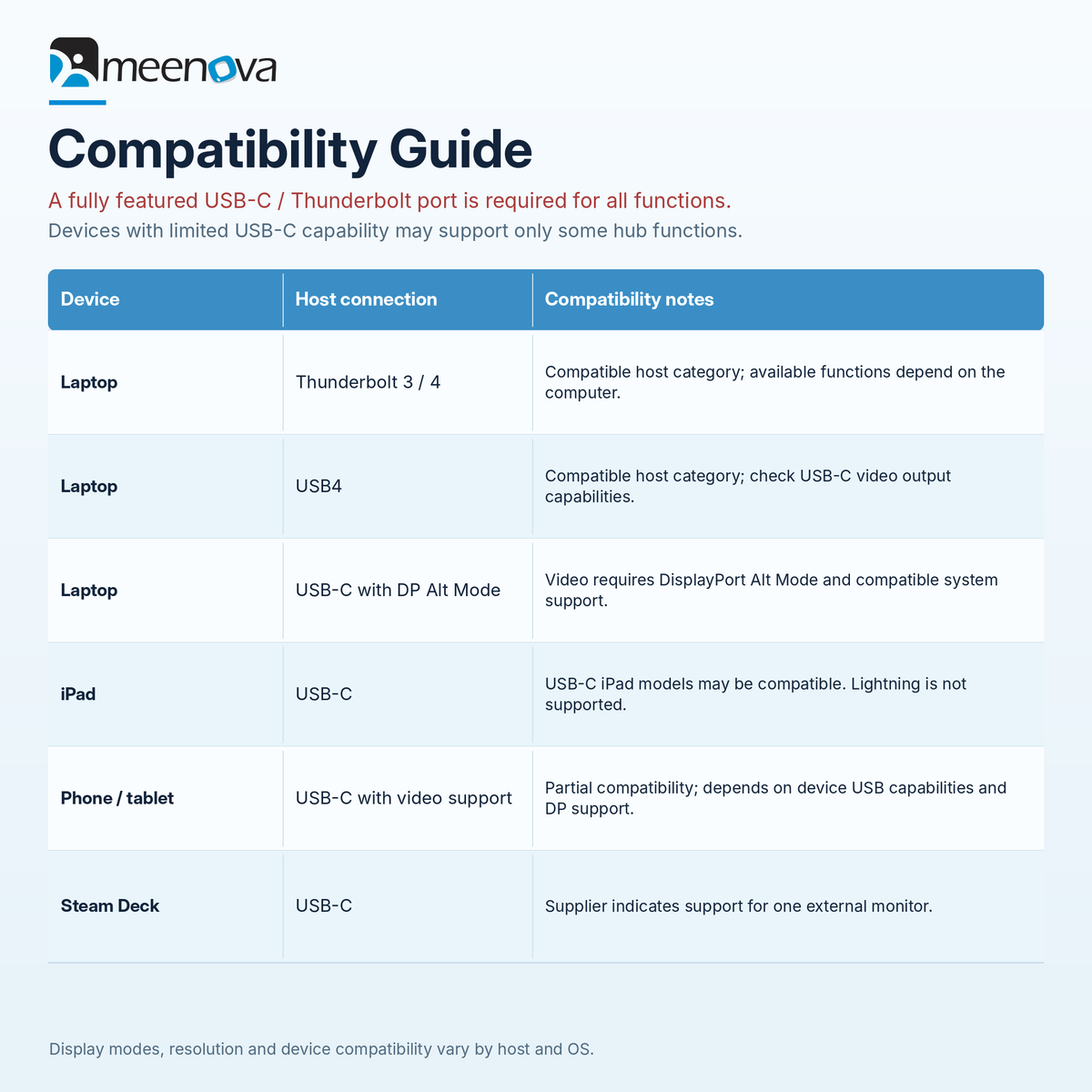

Compatibility & Choosing Your Version
Choose Dual HDMI when both displays connect by HDMI. Choose HDMI + DP when one display uses HDMI and the other uses a DisplayPort connector. These video ports are outputs, not laptop host inputs.
Supported device families advertised by the supplier include Windows, macOS, Linux and Android USB-C systems, but full functionality requires host capability. USB-C shape alone does not guarantee video output. Display extension on some macOS models may be restricted; specific models, supported screen counts, and macOS display modes should be verified before purchase.
